Standtop 7inch Stalk AHD Mirror Monitor

PRODUCT INTRODUCTION

Item number: ST-799M

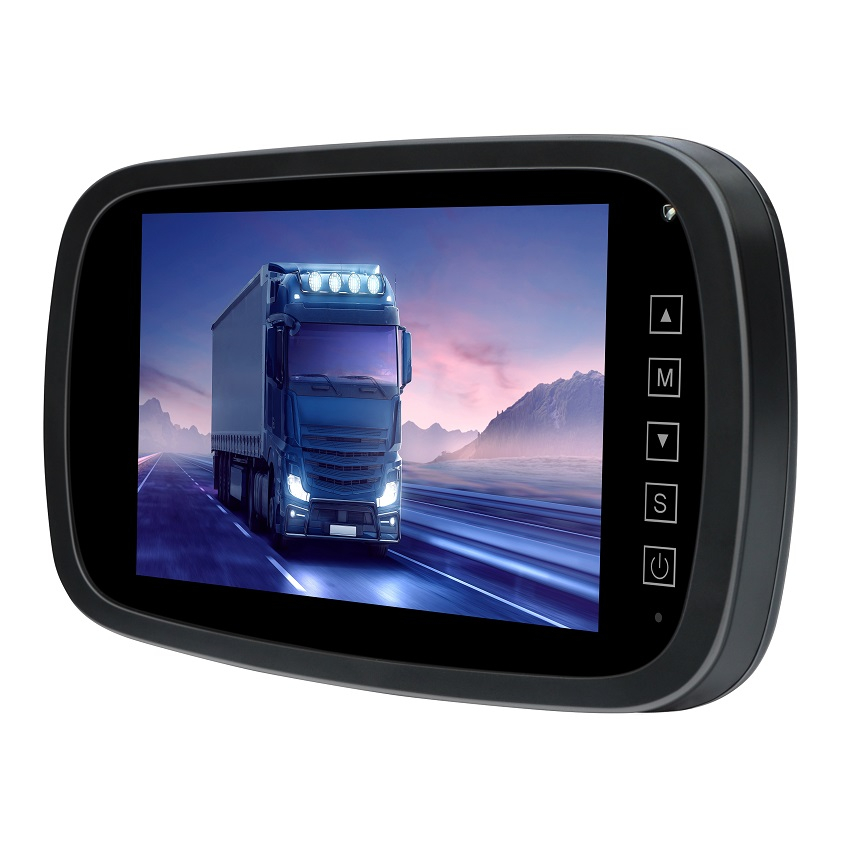

7inch Clip on AHD Mirror Monitor

This is a novel 7" rearview mirror monitor,the casing is very close to the original car's curved rearview mirror, the casing material is made of high-quality ABS material, the IPS full-view LED screen ,it supports AHD 1080P and CVBS signal , and the wide voltage 9-36V,It is very suitable for Car, small load Truck, Van, Motorhome etc.

Product Features:

7" Clip on AHD 1080p mirror monitor, touchscreen button
IPS Led panel, very clear picture quality
2 Channel,compatible with AHD and CVBS cameras inputs
Very easily attaches to the existing rearview mirror
Compatible with AHD and CVBS cameras inputs
Simply installation with no need for additional mounting hardware

Approvals and Certification: E-mark, CE

Product Parameters:

Category	Parameter
Screen Size	7inch IPS AHD 1080p
Resolution	1024600RGB
Mounting Method	Clip on, Mirror Stalk optional
Video input	2 Channel
Video Format	AHD/CVBS Hybrid
TV System	PAL/NTSC
Power supply	DC 9-36V
Power Consumption	7W
Screen ratio	16:9
Backlight luminance	LED, Luminance 500 cd/m2, 1000 cd/m2 optional
Viewing angle	L/R 85/85 U/D 85/85

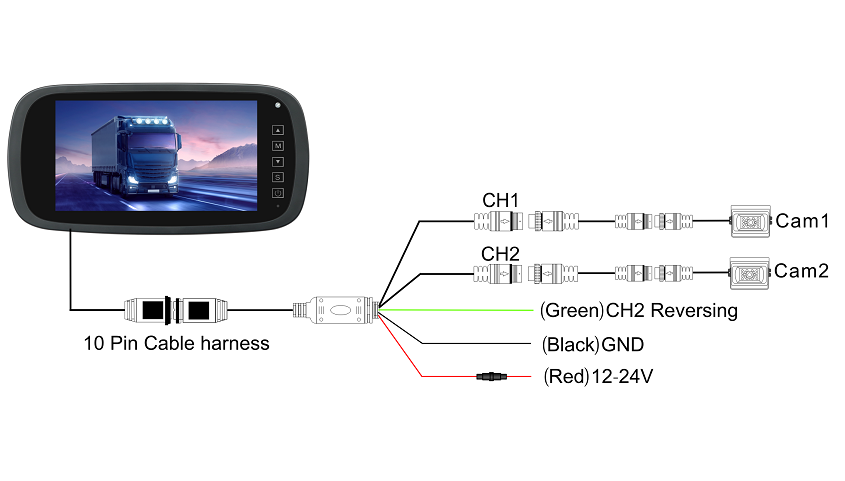

Signal input	2ch AHD 1080P /720P input, 2ch CVBS input, AHD/CVBS Hybrid
Trigger	1 trigger, Auto switch to reverse camera in reverse gear
OSD menu,Remote control	Yes
Connector	4pin aviation
Operating Temperature	-30℃～70℃, RH 95% MAX
