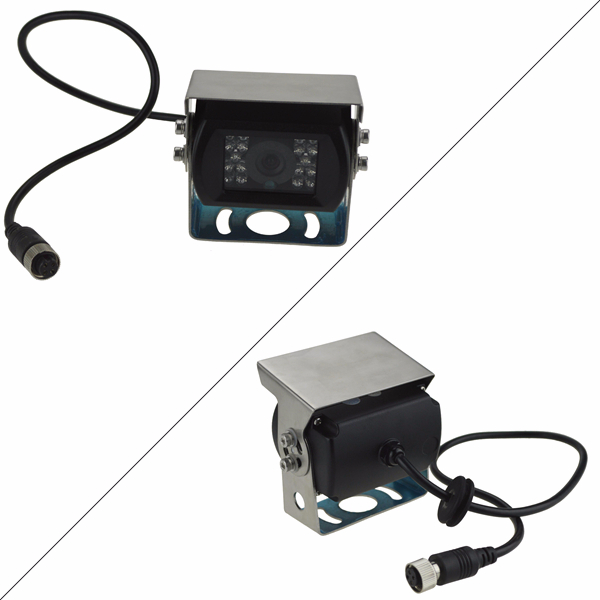

Item number: ST-CCD-800SS Stainless Steel Bracket
Main Features:
. 1/3" CMOS sensor optioanl
. AHD video format optional

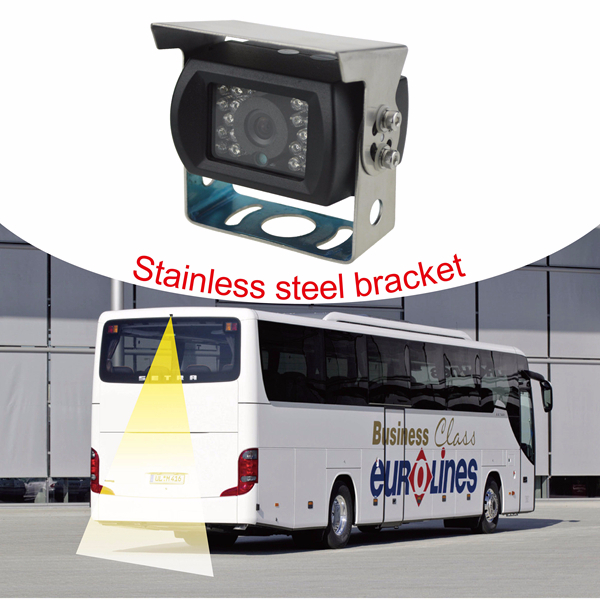

. With Stainless steel bracket
. Suitable for Bus/Commerical trucks/Trailer etc
Approvals & Certification: CE
Products Specs:
| Image Sensor | 1/3 Sony CCD sensor |
| Resolution | 600TVL |
| TV System | PAL/NTSC |
| Viewing angle | 120 Degree |
| Power supply | DC 12V |
| Waterproof Level | IP68 |
| IR lights | 10Pcs |
| Image | Mirror or Normal optional |
| Shockproof level | 4G |
| Power Consumption | ＜3W |
| Maximum current: | ＜250mA |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Video Output | 1.0 Vp-p/75 Ohm |
| Connector | 4pin or RCA optional |
| Operating Temperature | -20℃～70℃, RH 95% MAX |
| Storage Temperature | -30℃～80℃, RH 95% MAX |
