    PRODUCT INTRODUCTION

    Item number:ST-LPC-6

    • Number License Plate Rearview Camera
    • Number License Plate Rearview Camera
    • Number License Plate Rearview Camera
    • Number License Plate Rearview Camera
    • Number License Plate Rearview Camera
    • Number License Plate Rearview Camera
    • Number License Plate Rearview Camera
    • Number License Plate Rearview Camera
    Inquiry Now

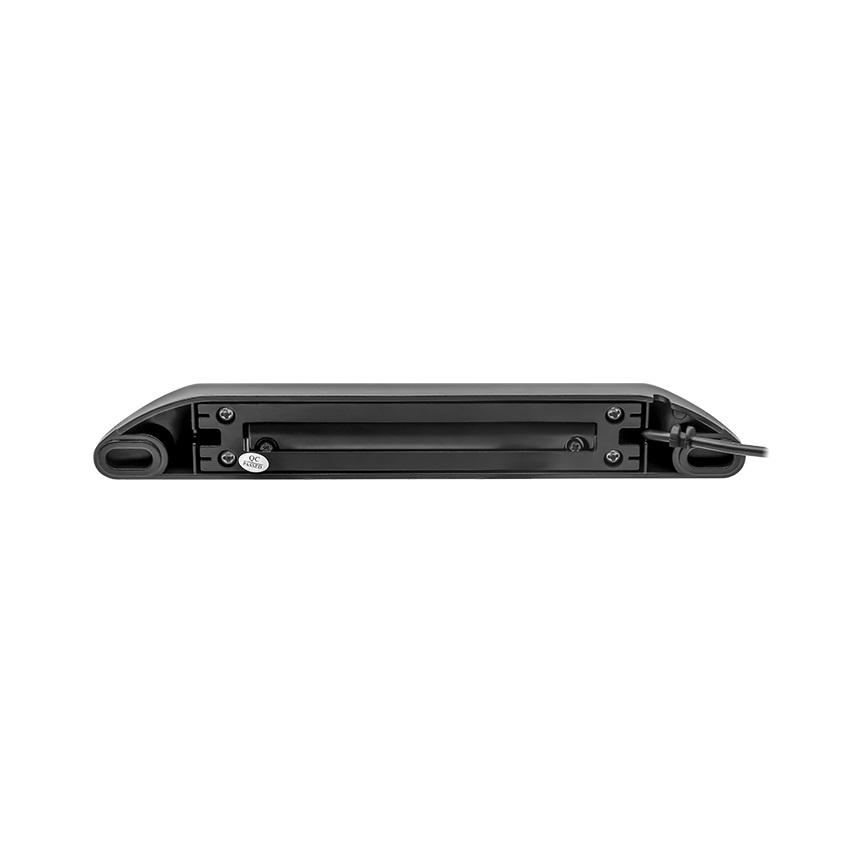

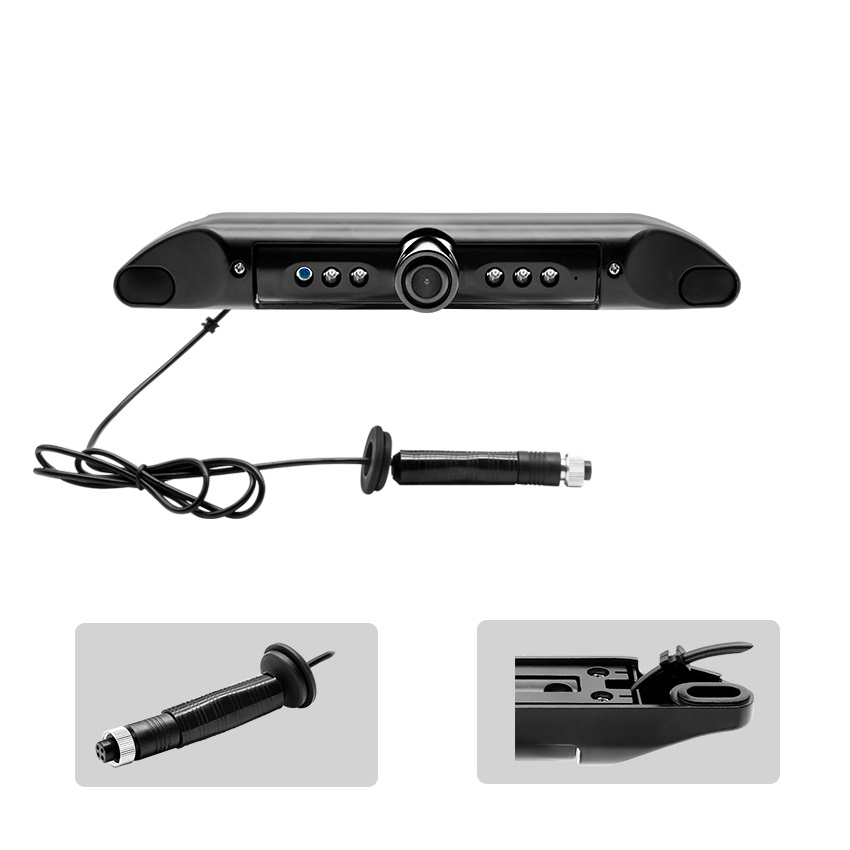

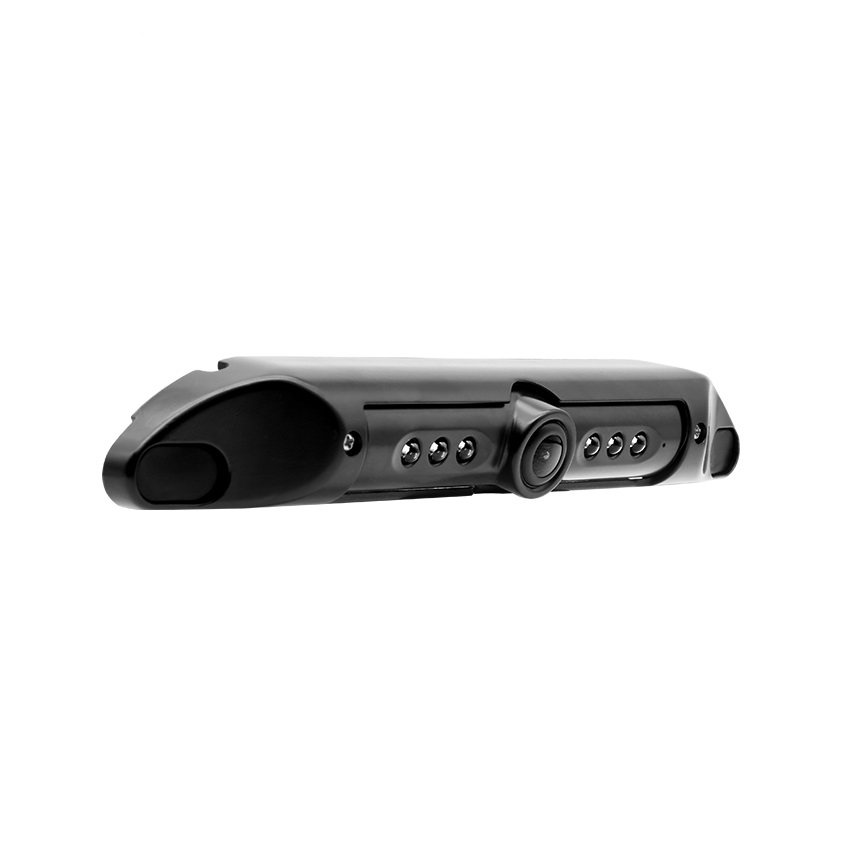

    Number License Plate Rearview Camera

    Product Features:

    • Aluminum Alloy Camera Casing
    • Horizontal angle 150 degrees
    • Audio/speaker optional
    • 4pin aviation connector or 4pin mini din optional

    Product Parameters:

    Category Parameter
    Image Sensor 1/2.9" CMOS Sensor
    Resolution AHD 1080p
    Effective Pixels  1920(H) x 1080(V)
    TV System PAL/NTSC
    Lens 1.7mm
    Viewing angle 150 Degree(H)
    Power supply DC 12V,  5V optional
    Waterproof Level IP68
    IR lights 5Pcs
    Audio  Optional
    Image Mirror or Normal optional
    Power Consumption ＜3W
    Maximum current ＜250mA
    Minimum Illumination 0.1 Lux (day), 0 Lux (with IR)
    Video Output 1.0 Vp-p/75 Ohm
    IR cut Yes
    Connector 4pin aviation
    Operating Temperature  -30℃～70℃, RH 95% MAX
